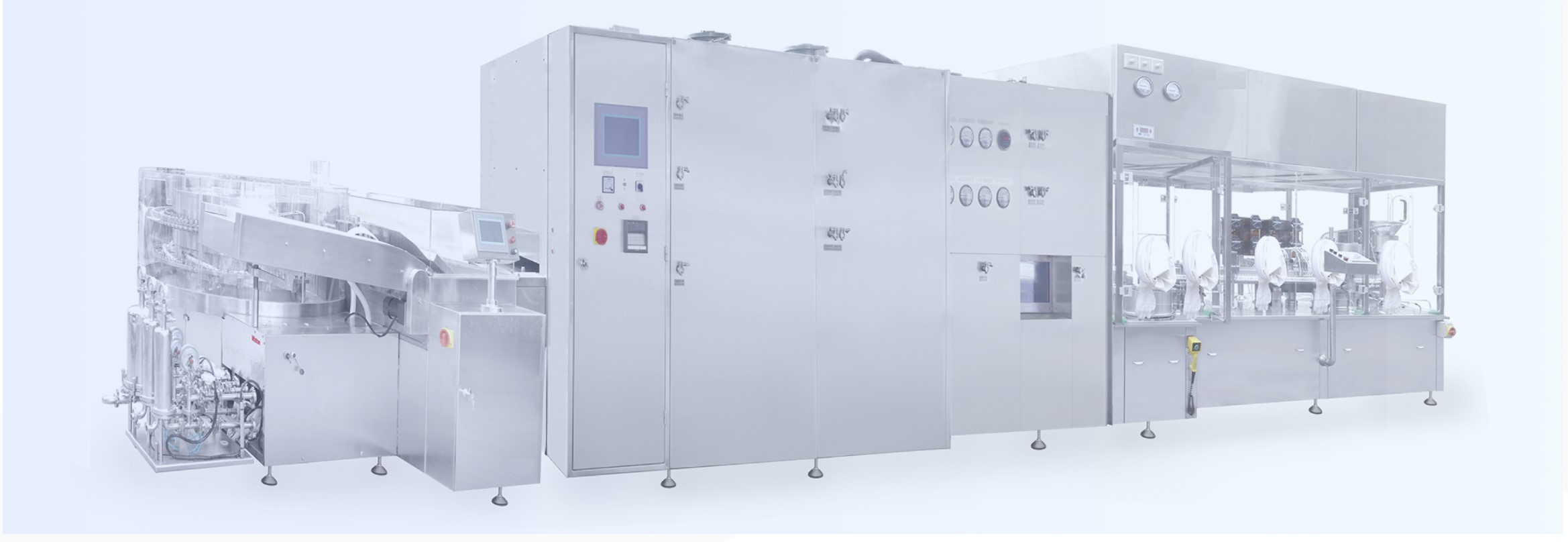

1.      vial washing  machine

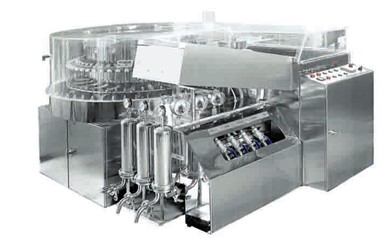

1.1             Reference Photo

1.2             Introduction

　AUTOMATIC VERTICAL BOTTLE WASHER is a new bottle washing equipment. It adopts “untouched bottle washing” method which is popular in the world now, uses water force generated by ultrasonic wave to shock down fragments inside/outside surface of bottles, called coarse washing. After that, the bottles enters fine washing section, inside and outside of the bottle are intensely rinsed by water/air 3 times and blowing . The water/air loop is isolated, in order to avoid cross pollution. After coarse/fine washing, bottles are transferred to next procedure.

1.3             Feature

1. The inside of machine is easy to clean and maintain.

2. Safety device: overload protection device is available.

3.The conveyor can feed/output bottles automatically, also there is bottle-turning system, which is low bottle breakage.

4. Bottle feeding belt runs steady, no falling. All joint and connection are smooth for bottle passing.

5.Variable speed regulation by inverter, displayed in touch screen

6.in case that wrong bottles enter working conveyor and can not pass, the machine stops automatically and alarms.

7. Coarse washing flume and fine washing flume are isolated.

8. Drive unit and washing area are strictly isolated. There is no lubricant leakage in transfer structure.

1.4             Wash process:

1.Ultrasonic wash (30℃-60℃ water)

2.wash cartridge inside and outside by cycling water (60℃-70℃，pressure :0.15-0.3Mpa)

3.Spray nozzle fill water in to bottle to wash

4.Clean compressed air to dry the bottle (0.2μm filter ,0.3~0.5MPa)

5.Injectable water to wash the bottle inside (0.2μm filter, 60℃-70℃，pressure :0.15-0.3Mpa)

6.Clean compressed air to dry the bottle

7.Clean compressed air to dry the bottle again.

1.5             Technical data

Suitable cartridge size:5ml

Bottle breakage ＜0.1％;

Voltage supply 380V/50Hz;

Power consumption:15.7kW;

WFI required (for fine washing, prepared by user): 0.15MPa, 0.5m3/hr;

Clean compressed air required (prepared by user): 0.3MPa, 30m3/hr;

;Running noise(without bottles) ≤70dB;

Dimension: 2140×1900×1300mm;

Weight: 2200kg

1.6             Configuration of the machine

2.      Tunnel sterilizer

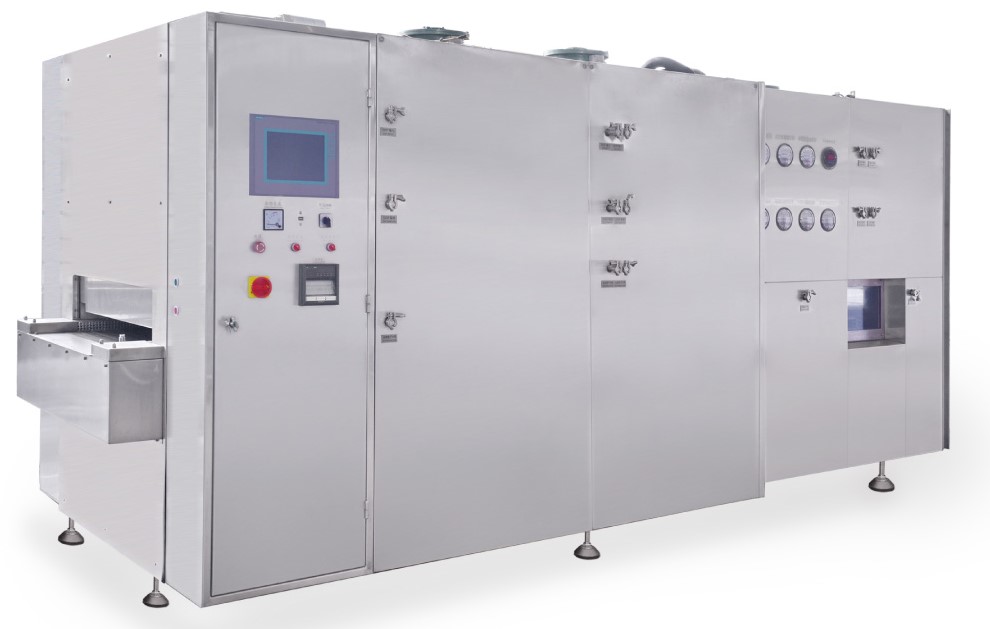

2.1             Reference Photo

2.2             Introduction

GMS series hot air circulating tunnel sterilization oven using electric heating as the heat energy, the energy generated by the electric heating elements, the use of hot air circulating fan oven heating section of Class 100 clean air inside the bottle of convective heat exchange cycle, the required sterilization of the bottle the heat transfer, and continuous supply of fresh air, while eliminating air or saturated humid chamber heat, so as to achieve drying of the items are sterilized bottles.

The machine consists of stainless steel mesh belt conveyor bottle items are in the process of belt conveyor; the bottles pass the one hundred laminar flow air heat and circulation, so as to achieve sterilization drying effect. Low temperature inside the bottle after warming up to cooling high heat sterilization, sterilized bottle to complete the whole process. Among them, the heat sterilization section of the air, when the high temperature hot air through the fan filter purified by high wind form a cycle, so purification of the bottle in the purification of one hundred hot air circulation under wind pressure of rapid and uniform drying and sterilization, it must block the entry of outside air, water content of the hot and humid air through the exhaust port from the plane. Among them, the heating section of the air in the oven is heating cycle. Oven built-in temperature measurement points, the required sub-set temperature and automatically adjust the control.

2.3             Feature

1. The air quantity in the whole machine can set to auto change frequency balance.

2. Automatic Segment display parameter and record and fault alarm display.

3. Complete 100-class laminar flow purifying system, air entrance and cooling stage are both l00-class laminar flowing, prevent external air into inside of machine, ensure keep 100-class operating in workroom.

4. Ensure 100-class clean operating in workroom.

5. Use chain wheel mechanism to deliver net stripe, avoid running deviation.

2.4             Technical Parameter

1.Sterilizing temperature: 300~350℃;

2. Sterilizing time: 5-7min;

3. Belt speed: 50-250 mm/min;

4. Purification class: 100grade

5. Belt width:500mm

9. Output: 80-120bottles/min

10. Power consumed: 75kW

11.Dimension: 4500x2100x2300mm (L*W*H)

12. Weight: 5000kg

13. Voltage supply: 380V 50Hz

3.      Cartridge  filling and sealing machine

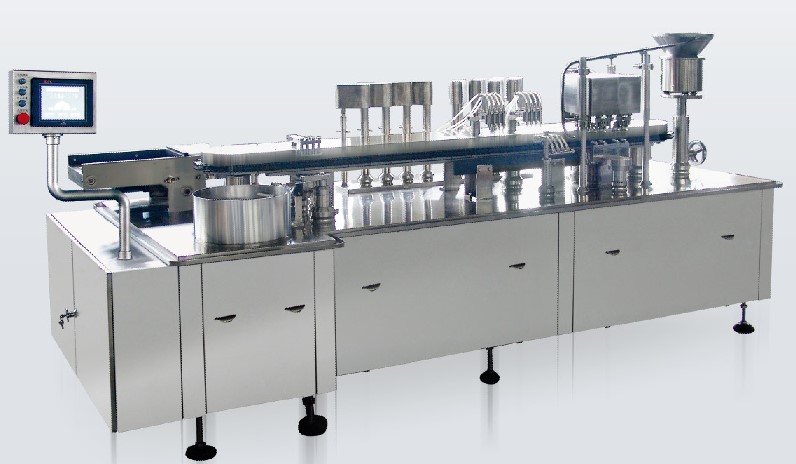

3.1             Reference Photo

3.2             Introduction

This cartridge filling&sealing machine is widely used in pharmaceutical. It is very advanced technology in recent pharmaceutical development ,This machine fully conform to GMP and CE certificate . This production line is developed by our technical personnel based on the former model with advanced technology and material; meet domestic packaging materials, well-designed, its performance is stable, machine equipment reasonable, mechanism is simple, run stable, easy to operation, easy to clean, choose the best package for one of the project.

The production orders of cartridges are different in nature: the whole filling section - automatic sealing section, separated by a transparent material, to prevent movement of contamination with each other. Slender glass bottles, small port diameter of bottles. So our company is designed using high-precision positioning, to achieve steady state operation

2.3             Working process

1.cartridge empty bottle enter from tunnel sterilizer automatically

2.Bottom stopper adding

3.Dosage filling (Pre-filling + after filling ,two times filling)

4.vacuum suction system to avoid bubble

5.Cap sealing section

6.Problem cartridge rejection

7.cartridge product output for next station of sterilizing

3.4             Parameter

Suitable product:          5ml cartridge

Working capacity: 4800-6000vials/hour

Power supply :220V,50HZ,2.1KW

Compressed air :0.25Mpa,14m3/h

Noise : ≤70dB

Filling accuracy : ≤±1%

Cap qualified ratio : ≥99.7%

Filling pump:4 head ,ceramic pump

Overall dimension : 3430×1350×1600mm
