1.      Syringe uploading machine

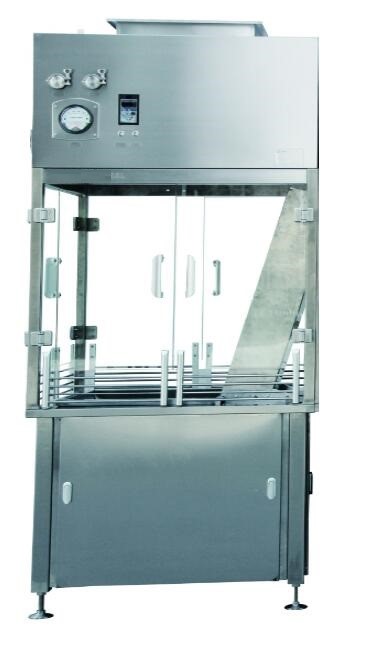

1.1             Reference Photo

1.2            Introduction

The function of the plastic syringe elevator is to lift the syringe to be filled, which is manually poured into the syringe storage hopper, assembled with the syringe piston and push rod, to the entry of the plastic syringe filling and capping machine after the syringe is automatically arranged by the pipe management machine through the sanitary scraper belt.

1.3             Main Technical Parameters

(1) 2-phase power supply voltage: 220 V

(2) Power of the whole machine: 0.9 kw

(3) Syringe lifting speed 30-180 pieces / min, speed adjustable

(4) Install tube inspection sensor, and make up the tube automatically

(5) PLC programming

(6) Touch screen control

(7) Noise ≤ 40 dB

(8) 304 rack

(9) Plexiglass isolation window with door opening and shutdown protection

(10) Weight: 380 kg

2. Syringe unscrambler machine

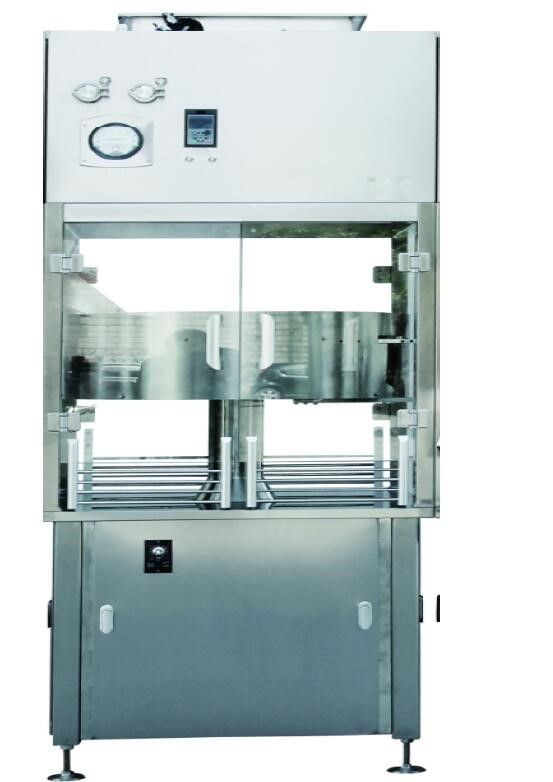

2.1             Reference Photo

2.2             Main Technical Parameters

(1) 2-phase power supply voltage: 220 V

(2) Power of the whole machine: 0.9 kw

(3) Syringe lifting speed 30-180 pieces / min, speed adjustable

(4) equipped with inspection sensor, and make up the tube automatically

(5) PLC programming

(6) Touch screen control

(7) Noise ≤ 40 dB

(8) 304 rack

(9) Plexiglass isolation window with door opening and shutdown protection

(10) Weight: 380 kg

3. Syringe filling and capping machine

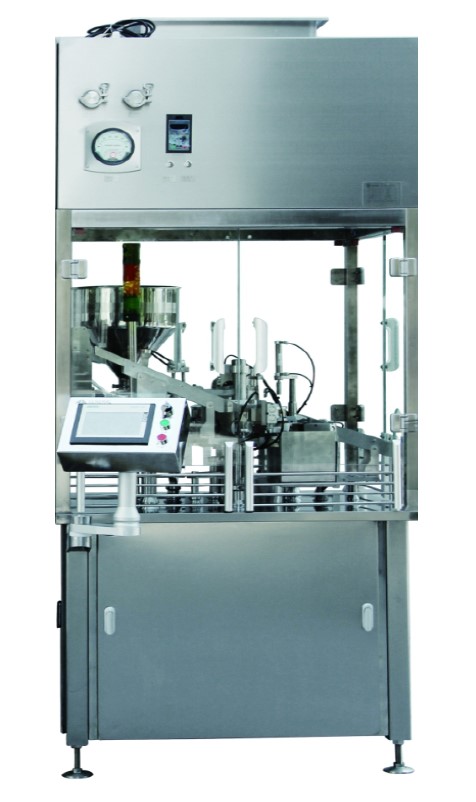

3.1             Reference Photo

3.2             Introduction

The function of the filling and capping machine is to accept the assembled syringe to be filled. The syringe tube slide plate to be filled is arranged in order, and the syringe is vertically suspended into the feeding tube chute. The feeding tube manipulator is sent to the station manipulator on the station tray. The station manipulator grasps the syringe and rotates to the turnover station with the station tray. The station manipulator rotates 180 ° to make the syringe needle mouth upward, The station disk continues to rotate, the station manipulator drives the syringe with the injection needle mouth upward to the filling station, the injection needle valve goes down to cooperate with the injection needle mouth of the syringe, the feeding pump goes up and the feeding valve opens to fill the liquid into the syringe, and under the pressure of the liquid, the piston push rod of the syringe goes down until the filling of the liquid is completed; the station disk continues to rotate to the capping station, and the stopper vibrates the disk The cover of the syringe is placed on the needle mouth of the syringe by the capping manipulator; the station disk continues to rotate to the capping station, and the capping manipulator presses the cover firmly to seal the syringe, and the cover is locked with the rotation of the station disk and finally slips out of the discharge chute

3.3             Main Technical Parameters

(1) Power supply voltage: 380V 50Hz

(2) Power of the whole machine: 1.7kw

(3) Stable production capacity: 50 pieces / min 5ml precision 2%

(4) Vibration disc management

(5) Alarm and shutdown if no syringe

(6) Vibrating plate cover

(7) Alarm rate of cover shortage shutdown: 100%

(8) Success rate of capping: ≥ 99%

(9) Compressed air: 0.7MPa

(10) Material contact part 316L material

(11) Ceramic feed pump, ceramic feed valve

(12) 304 rack

(13) The glass isolation window is equipped with door opening and shutdown protection

(14) PLC programming

(15) Touch screen control

(16) Fault stop alarm

(17) Noise ≤ 45 dB

(18) The outline dimension is shown in the figure

(19) Total weight: about 680kg

4.  Syringe labeling machine (option)

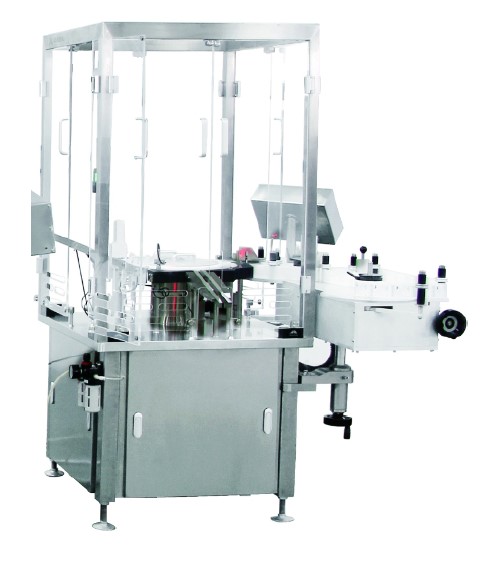

4.1             Reference Photo

4.2             Introduction

The plastic syringe labeling machine accepts the syringes sent by the transmission machine, labels the syringes, prints the batch number

4.3             Main Technical Parameters

(1) Power supply voltage: 380V, 50Hz

(2) Power: 2KW

(3) Stable production capacity: 45 pieces / min

(4) Rod less rejection rate: 100%

(5) Removal rate without cover: 100%

(6) Labeling pass rate: 99%

(7) Compressed air: 0.7MPa

(8) Fault shutdown alarm

(9) Noise ≤ 45 dB

(10) The overall dimensions are shown in the figure

(11) Wooden packing

(12) Weight: 650 kg

(13) Packing weight: 750 kg
